HIBER GCM012S

HIBER GCM012S | Blast Chilling, Shock Freezer

MAIN FEATURES

• External sides and top in AISI 304 18/10 stainless steel th. 0.6mm (Scotch-Brite satin finish)
• AISI 304 18/10 stainless steel door th. 0.8mm (Scotch-Brite satin finish)
• Internal covering completely radiated in AISI 304 18/10 stainless steel
• Internal base moulded for containment with central drain connection for discharge of water
• High-density expanded polyurethane 60mm insulation (about 42 kg/m3), without HCFC
• Copper – aluminum evaporator, protected with non-toxic epoxy resins through cataphoresis
• Evaporator with multiple gas injection points
• Fan deflector can be opened on side hinges, in order to clean the evaporator
• Copper condensing coil with high heat yield aluminum fins
• Anti-condensation resistance positioned in the box under the magnetic gasket
• Ergonomic handle on the complete door length and magnetic gaskets on the 4 sides of the door
• Self-closing doors with block when opened to 100°
• Stainless steel feet Ø 2”height-adjustable H 150÷180 mm with anti-scratch cap
• Core probe heated for easy extraction

INTERNAL SET-UP

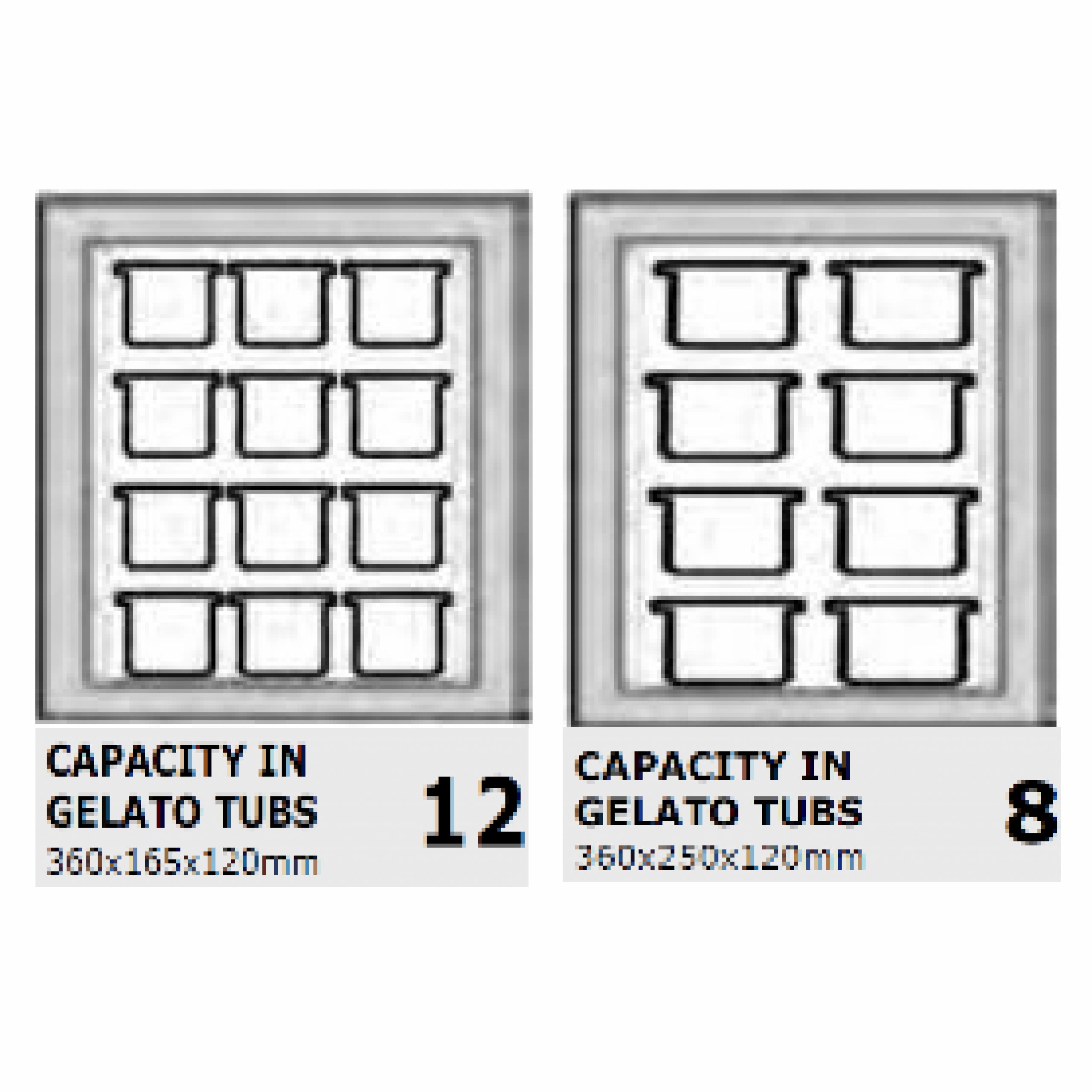

• Equipped with one set of tray slides supports (removable) having 11 positions with 50 mm. interstep and 17 positions at 32,5 mm. Interstep
• 3 pair of “C”-shaped guides and 3 stainless steel grids 600×400 + 5 pair of “L” shaped runners
• heated core probe

REFRIGERANT UNIT

• Fans with indirect flow onto the product
• Hermetic compressor
• R404A refrigerant liquid
• Evaporators with large exchange surfaces, for high efficiency
• Manual defrosting device and condensation evaporation system without use of electrical energy
• High capacity liquid/gas heat exchanger

COMMANDS, CONTROLS AND SAFETY DEVICES

• Control and command circuit board equipped with highvisibility custom display,
• The T version can memorise up to 99 programs, can store any HACCP alarms in the memory and control up to 4 needle or 4 sensors (optional)
• Circuit breaker for compressor protection
• Internal fan stop micro switch when door is opened
