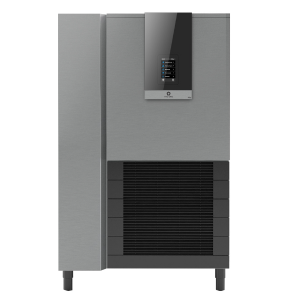

HIBER H524TS

HIBER H524TS | MULTIFUNCTION BLAST-CHILLER SHOCK-FREEZER THEONE

TECHNICAL FEATURES

• External sides and top in AISI 304 stainless steel th. 0.6 mm (Scotch-Brite satin)
• Door in stainless steel AISI 304 th. 0.8 mm (Scotch-Brite satin)
• Internal compartment with rounded corners in AISI 304 stainless steel
• Cavity with central drain for discharge of washing water
• High-density polyurethane insulation (about 42 kg/m3), thickness 60mm, without HCFC
• Anti-condensation heating element, placed under the frame
• Ergonomic handle on the complete door length and magnetic gaskets on the 4 sides of the door
• Ergonomic full-height handle and magnetic gaskets on the 4 sides of the door

5 FUNCTIONS

• Blast Chilling
• Shock Freezing
• Thawing at controlled temperature and humidity
• Proofing retarder
• Low temperature cooking

INTERNAL SETUP

• Removable guides in stainless steel AISI 304, Easily repositioned to accommodate GN1/1 or 600×400 trays
• Removable “L” guides in AISI 304 stainless steel, which can be positioned interlocking every 15 mm
• Heated core probe, with 4 measuring points

COOLING SYSTEM

• Indirect airflow
• Hermetic compressor (semi-hermetic in mod. H524TS)
• R452a refrigerant
• High forformance Copper-aluminium evaporator with cataphoresis anti-corrosion treatment
• High forformance copper-aluminium condenser
• Patented hot gas defrosting system for the evaporator
• Automatic system evaporating the frost melded off the evaporator, without using electricity (heating cartridge on mod H524TS)

CONTROLS AND SAFETY DEVICES

• 7 ” IPS capacitive TOUCH display in high definition placed on the door, easy to use
•  Circuit breaker for compressor protection
• USB port for download cycles, firmware upgrade, upload / download of recipes, etc.
• Internal fan stop by micro switch when door is opened
